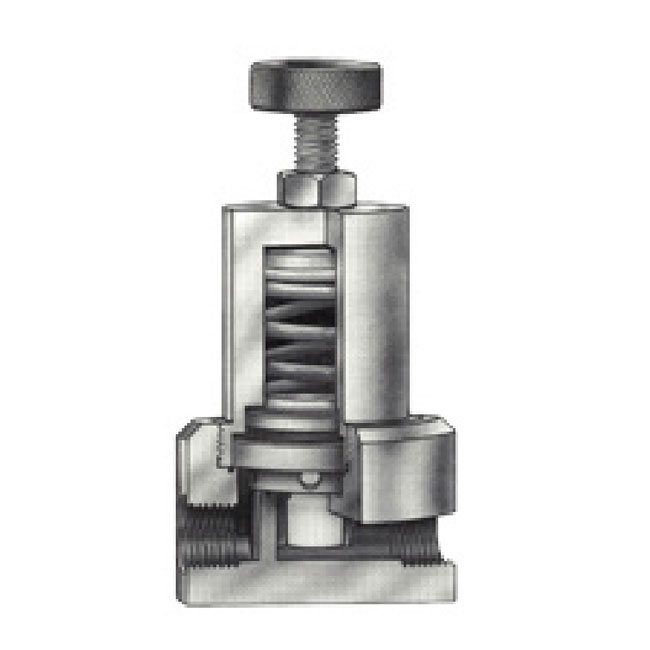

| Chemical isolation: Stainless steel spring is totally isolated from the fluid chamber |
| No metal contact: Designed so no metal contacts the fluid |
| Chemical compatibility: Suitable for harsh chemicals, DI water, and high purity applications |
| High sensitivity: Designed to be more sensitive to pressure changes while protecting downstream systems |
| Excellent flow control: Provides superior flow ratios over a wide pressure range |
| Versatile applications: Suitable for DI water and other ultra pure applications |
| Precision adjustment: Adjustable screw and lock-nut system for precise pressure setting |
| Performance curves show the flow rate of DPR valves with piston seal fully open. Regulated pressure indicates the approximate DPR valves at the points of pre-set downstream pressures. |
| Test data was performed with 68°F water, and 100 PSIG maximum pressure |
| These performance curves will be changed with higher viscosity liquid and/ or higher temperature. |
| Consult your local sales rep or manufacturer directly for custom products or special applications. |
| Metrail | Temperature |
|---|---|
| OTHER | 0°F-340°F |
| POLYPRO | 0°F-180°F |
| PVC | 0°F-140°F |
| PVDF | 0°F-280°F |
| TEFLON | 0°F-340°F |
| ¼” to 1” Valve FNPT |
| 1.5” to 2” Valve MPT |
| All valves are fully ported |
