Pressure protection: Designed to protect piping systems and equipment from pressure changes.
Adjustable downstream pressure: Features an adjustable screw and lock nut for easy conversion of varying upstream pressure into accurate preset downstream pressure.
Recommended adjustment range: Outlet pressure should be adjusted in a closed-loop system within a range of 15-100 PSI.
Easy installation: Top entry and parallel inlet and outlet ports facilitate installation and avoid piping problems.

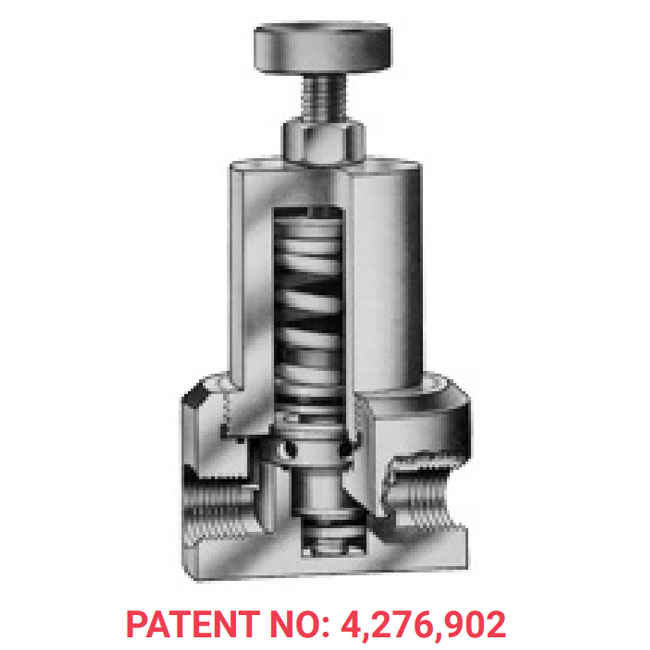

Patented design: The patented pressure reducing valve keeps the stainless steel spring completely isolated from the fluid chamber, ensuring no metal contact with the fluid.
Ideal for pressure protection: Suited for systems that require additional pressure protection.
Test data was performed with 68°F water and 160 PSIG maximum pressure.
These performance curves will be changed with higher viscosity liquid and/or higher temperature.
Consult your local sales rep or manufacturer directly for custom products or special applications
Metrail
Temperature
OTHER
0°F-340°F
POLYPRO
0°F-180°F
PVC
0°F-140°F
PVDF
0°F-280°F
TEFLON
0°F-340°F
¼” to 1” Valve FNPT
1.5” to 3” Valve MPT
