LOW PRESSURE FLUID PRESSURE REGULATOR

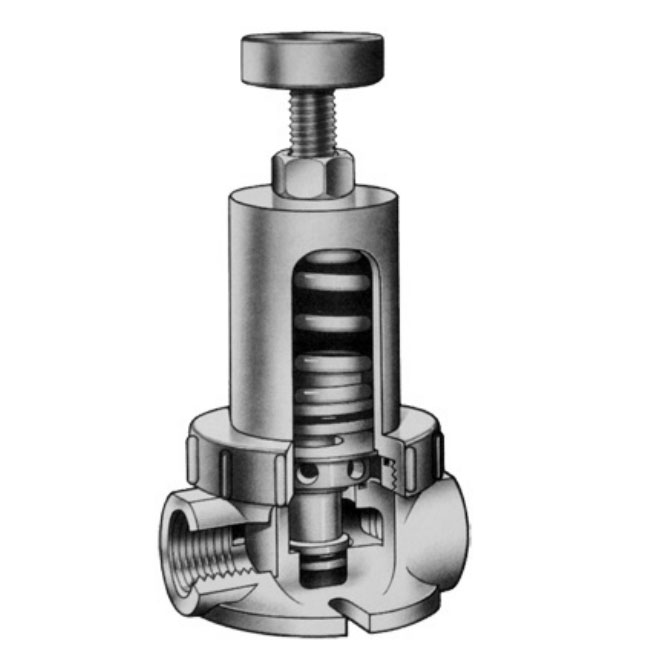

The R-K LPR series low pressure fluid pressure regulator is designed to protect piping systems from pressure changes. This pressure reducing valve provides excellent flow at low range settings. The adjustable screw and lock nut makes it easy to convert varying upstream pressure into accurate pre-set downstream pressure. Outlet pressure should be adjusted in a closed loop system within a range of 5-50 P.S.L

This patented valve is designed so there is no metal contact with the fluid. This compact valve features top entry for easy in-line maintenance. It’s ideally suited for systems that require added pressure protection.

Download Brochure With Datasheet

Seals :- EPDM, VITON, KALREZ, OTHER,

Valve Sizes

1/4" 1/2" 3/4" 1" 2" 3" 1.5”

Adjustable Pressure : The adjustable screw and lock nut allow for easy conversion of varying upstream pressure into a pre-set downstream pressure. The outlet pressure can be adjusted in a closed-loop system to a range of 15-100 PSI.

Design : It has top entry and parallel inlet and outlet ports to facilitate installation and prevent piping problems.

Applications: It is suitable for most harsh chemicals, deionized (DI) water, and other high-purity applications.

Test data for the product was performed using 68°F water and a maximum pressure of 160 PSIG.

The performance curves will change if a higher-viscosity liquid or a higher temperature is used.

For custom products or special applications, you should consult a local sales representative or contact the manufacturer directly

Metrail	Temperature
OTHER	0°F-340°F
POLYPRO	0°F-180°F
PVC	0°F-140°F
PVDF	0°F-280°F
TEFLON	0°F-340°F

¼” to 1” Valve FNPT

All valves are fully ported

1.5” to 3” Valve MPT
