NO LUBE PRESSURE RELIEF VALVE

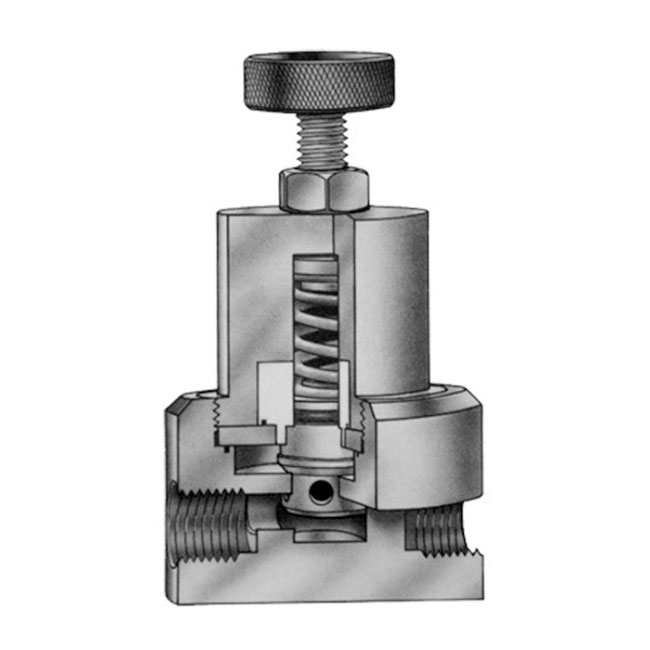

The R-K NLR series no lube pressure relief valve is a 2-port valve, ideal for applications where no lubrication is required or permitted, to relieve excess pressure that may occur in the line or system. Adjust the threaded stem to obtain selected line or tank relief pressure. An outlet (tee) may be required on the downstream side. The valve starts to open as line pressure approaches set pressure until it is fully open. The valve can be set to relieve excess pressure between 10-80 P.S.I.The 1/ 4” valve is also available with a relief range of 60-125 PSI It’s designed so there is no metal contact with the fluid and top entry makes in-line maintenance easy.

Suitable for harsh chemicals. Ideal for DI water and other high purity applications. Controlled pressure settings up to 100 PSI available upon request. This valve is not designed to be used in systems with back pressure on the downstream side.

Download Brochure With Datasheet

Seals :- EPDM, VITON, KALREZ, OTHER,

Valve Sizes

1/4" 1/2" 3/4" 1" 1 1/2" 2" 3" 4"

No-Lube Design

Designed for applications where lubrication is not allowed or required.

Prevents contamination — ideal for high-purity systems

Standard range: 10–80 PSI.

¼” valve option: 60–125 PSI.

Custom settings up to 100 PSI available on request.

2-Port Configuration

Simple 2-port design for line or tank pressure relief.

Progressive Opening

Valve begins to open as line pressure approaches the set point.

Fully opens under excess pressure (not a “pop-off” type).

The performance curves show the flow rate of nlr valves with the valve fully open and 100% flow thru the valve. These curves will change depending on the flow through the system at each different set point.

During the assembly process, a small amount of dupont krytox is applied to assist in the break-in of moving parts, then carefully wiped off prior to final assembly and testing.

Test data was performed with 68°F water, and 160 PSIG maximum pressure.

These performance curves will be changed with higher viscosity liquid and/or higher temperature.

Metrail	Temperature
OTHER	0°F-340°F
POLYPRO	0°F-180°F
PVC	0°F-140°F
PVDF	0°F-280°F
TEFLON	0°F-340°F

¼” to 1”: Female NPT (FPT)

1½” and 4”: Male NPT (MPT)
